Choosing the right PCIe 4.0 riser for your server can significantly impact performance and upgrade flexibility. The best options offer high data transfer rates, durability, and compatibility with various hardware configurations. Among the standout picks is the XUMIUZIY PCIe 4.0 Riser Cable for its high-speed capacity and flexibility. The LINKUP PCIe 5.0 Riser Cable also deserves mention for future-proofing with PCIe 5.0 support. However, tradeoffs such as length limitations, shielding quality, and build durability make selecting the right riser complex. Continue reading for a detailed breakdown to help you find the ideal match for your server needs.
Complete the kit
Key Takeaways
- High-speed PCIe 4.0 risers with EMI shielding and flexible designs outperform rigid, older models in data integrity and ease of installation.
- Cable length matters: longer cables (above 200mm) often introduce signal degradation unless they have advanced shielding or active components.
- Compatibility with latest GPUs (like RTX 40 series) requires checking both PCIe version and physical form factors, especially for vertical mounting.
- Premium options tend to have better shielding and build quality but come at a higher cost, so balance your budget and performance needs.
- Future-proofing with PCIe 5.0 support is available but often at a premium; most server setups still rely on PCIe 4.0 for now.
| pcie 40 riser for server | Length | Compatibility | Shielding | Bandwidth |
|---|---|---|---|---|
| XUMIUZIY PCIe 4.0 Riser Cable | — | — | — | — |
| LINKUP PCIe 5.0 Riser Cable fo | 40cm | PCIe 4.0 & 5.0 | Multilayer | — |
| PCIe 4.0 Riser Cable 90 Degree | 20cm | PCIe 4.0 & PCIe 3.0 | — | Over 64Gb/s |
| PCIe 4.0 x16 Riser Cable 100mm | 100mm | RTX 40/30 Series, RX 7000/6000 Series | Triple-layer EMI | 64GB/s |
| GLOTRENDS 300mm PCIe 4.0 x16 R | 300mm | N/A | Advanced EMI | 32GB/s |
| OwlTree PCIe 4.0 Riser Cable | 200mm / 7.8 inches | PCIe 4.0 and PCIe 3.0 | — | — |
More Details on Our Top Picks
XUMIUZIY PCIe 4.0 Riser Cable, GPU Extension Cable, X16, 128Gbps High-Speed Flexible Adapter
This PCIe 4.0 x16 riser cable stands out for its support of extremely high data transfer rates up to 128Gbps, making it ideal for demanding GPU applications like AI or high-end gaming. Compared to the GLOTRENDS model, it offers broader compatibility with PCIe 4.0, 3.0, 2.0, and 1.0 devices, but it requires careful handling due to its flexible design, which can be prone to damage if mishandled. Its shielded, durable construction enhances airflow and cooling, a critical advantage over less shielded cables. While it offers plug-and-play simplicity, its indoor-only use limits deployment options. This pick is best suited for users needing reliable, high-speed GPU connections in a controlled environment, such as server racks or custom gaming setups.
Pros:- Supports data transfer up to 128Gbps, suitable for PCIe 4.0 applications
- Compatible with multiple PCIe generations, offering flexibility
- Shielded design enhances airflow and cooling efficiency
- Plug-and-play installation without BIOS adjustments
Cons:- Requires careful handling to prevent damage during installation
- Limited to indoor use, reducing versatility in some environments
Best for: Power users requiring maximum data throughput for GPU-intensive tasks, such as AI, deep learning, or high-end gaming servers
Not ideal for: Home users with casual setups or those who prefer simple, durable cables for basic GPU extensions, as it demands careful handling and environment control
- Item Type:PCIE 4.0 x16 Riser Cable
- Material:ABS, PCB
- Color:White
- Interface:PCIE 4.0 x16
- Rate:128Gbps
- Connector Gender:Male-to-Female
Our verdict“This cable is best for high-performance server or AI setups where maximum data transfer and durability are priorities.”
LINKUP PCIe 5.0 Riser Cable for Vertical GPU Mount, 40cm
This PCIe 5.0 riser cable makes a compelling choice for those building future-proof systems, supporting bandwidth up to 128GB/s and backward-compatible with PCIe 4.0. Compared with the XUMIUZIY cable, it emphasizes vertical GPU mounting, offering more flexibility for custom aesthetic builds and airflow optimization. Its multilayer shielding and tuned impedance help maintain signal integrity, even at high speeds, but installation may be tricky in tight cases, requiring precise measurements and support brackets. The 40cm length provides ample room for most cases, but users with compact setups might find it excessive. It’s ideal for enthusiasts wanting to showcase high-performance GPUs with sleek visuals and improved airflow in custom cases.
Pros:- Supports PCIe 5.0 for maximum future-proofing
- Backward-compatible with PCIe 4.0 and earlier
- Flexible installation options with multiple angles and lengths
- Enhances airflow and visual appeal in custom setups
Cons:- May require support brackets in tight spaces
- Compatibility depends heavily on case layout and standoffs
Best for: Enthusiasts and builders focusing on aesthetic, high-performance, vertical GPU configurations in custom gaming or server builds
Not ideal for: Casual users or small form factor builders who need shorter, more straightforward cables without complex mounting requirements
- Length:40cm
- Compatibility:PCIe 4.0 & 5.0
- Performance:128GB/s PCIe 5.0 x16
- Shielding:Multilayer
- Design:Vertical mount support
Our verdict“This cable suits builders seeking future-proof, vertical GPU mounting with a focus on aesthetics and airflow management.”
PCIe 4.0 Riser Cable 90 Degree, PCIe 4.0 x16 High Speed Flexible Extender Card, EMI Shielded 30AWG, TPE Cable Sleeves, Compatible with RTX 4090, 4080, 4070, 3090, and PCIe 3.0 Systems, 20cm
This PCIe 4.0 riser cable is designed for tight spaces, with a 90-degree angle and a short 20cm length that make it suitable for compact builds or specific GPU placements. It supports high-speed PCIe 4.0 data transfer, comparable to the GLOTRENDS cable, but its shorter length limits flexibility in larger setups. The EMI shielding and gold-plated connectors ensure stable performance, especially important when connecting high-end GPUs like RTX 4090 or RTX 4080. However, the limited length means it’s less adaptable for broader system layouts, requiring precise planning. This model makes the most sense for small form factor builds or vertical GPU mounts in confined cases.
Pros:- Supports PCIe 4.0 high-speed data transfer
- Flexible, durable TPE cable sleeves facilitate routing
- EMI shielding and gold-plated connectors enhance performance stability
- Ideal for compact or vertical GPU setups
Cons:- Limited length restricts placement options
- Requires precise measurement and compatibility with system layout
Best for: Small, space-constrained systems needing reliable high-speed GPU extension without excess cable length
Not ideal for: Users with larger cases or those needing longer cable runs for flexible GPU placement
- Length:20cm
- Compatibility:PCIe 4.0 & PCIe 3.0
- Bandwidth:Over 64Gb/s
- Wire Gauge:30AWG
- Cable Material:TPE
Our verdict“This cable suits compact builds or vertical GPU mounts where space is tight and high-speed performance is required.”

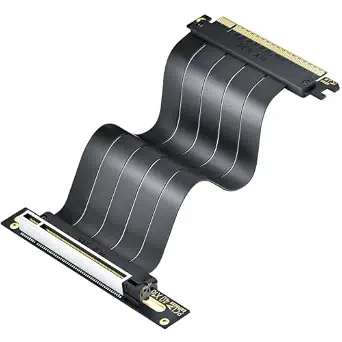

PCIe 4.0 x16 Riser Cable 100mm, 64GB/s Shielded Flexible GPU Extension Cable for Vertical GPU Mount, Supports RTX 40/30 Series and RX 7000/6000 Series
This PCIe 4.0 x16 riser cable offers a compact 100mm length, making it particularly suitable for vertical GPU mounting in small or showcase builds. Its maximum bandwidth of 64GB/s is slightly lower than the other PCIe 4.0 options but still provides ample performance for most high-end GPUs like RTX 40/30 series. The triple-layer EMI shielding and gold-plated contacts ensure signal integrity during intense workloads. Compared to the GLOTRENDS cable, it’s shorter but offers robust shielding for reliable performance. Its durable, flat cable design simplifies routing in confined spaces, although the short length limits flexibility in larger setups. This makes it ideal for compact gaming rigs or server nodes focused on GPU display or performance.
Pros:- Supports PCIe 4.0 x16 with 64GB/s bandwidth
- Triple-layer EMI shielding for signal clarity
- Short, flat design simplifies routing in tight spaces
- Gold-plated contacts ensure durability
Cons:- Limited length restricts placement options
- Lower maximum bandwidth compared to longer PCIe 4.0 cables
Best for: Small form factor or vertical GPU setups where space is limited but high-speed data transfer is still desired
Not ideal for: Large cases or systems needing longer cables with more flexible routing options
- Length:100mm
- Compatibility:RTX 40/30 Series, RX 7000/6000 Series
- Bandwidth:64GB/s
- Shielding:Triple-layer EMI
- Construction:Flat cable
Our verdict“This cable is best for vertical GPU mounts in small or confined builds where space-saving is a priority without sacrificing high-speed PCIe 4.0 performance.”
GLOTRENDS 300mm PCIe 4.0 x16 Riser Cable for GPUs
The GLOTRENDS 300mm PCIe 4.0 x16 riser cable offers a longer reach for flexible GPU placement, supporting full PCIe 4.0 bandwidth up to 32GB/s. Compared with the shorter PCIe 4.0 x16 cable, it excels in larger systems or setups where the GPU needs to be positioned farther from the motherboard. Its advanced EMI shielding and high-quality silver-plated copper wiring provide stable signal integrity, making it a reliable choice for high-performance systems. However, the longer length introduces potential signal loss or interference if not properly shielded, and it requires careful handling during installation. This cable makes the most sense for users with spacious cases or custom server racks seeking extended reach without losing performance.
Pros:- Supports full PCIe 4.0 x16 bandwidth for high-speed GPU operation
- High-quality silver-plated copper wiring enhances signal stability
- Extended 300mm length provides flexible placement options
- Advanced EMI shielding reduces interference
Cons:- Longer cable can be harder to route and manage
- Requires careful handling to avoid damaging delicate wiring
Best for: Users building large or spacious systems needing flexible GPU placement without sacrificing PCIe 4.0 bandwidth
Not ideal for: Compact or tightly packed systems where cable length could cause routing issues or signal degradation
- Length:300mm
- Compatibility:N/A
- Bandwidth:32GB/s
- Shielding:Advanced EMI
- Material:Silver-plated copper
Our verdict“This cable is suited for larger builds where extended reach and high-speed PCIe 4.0 performance are both necessary.”
OwlTree PCIe 4.0 Riser Cable, 90 Degree Flexible Extension, 200mm/7.8inch, Compatible with RTX 4090, 4080, 4070, 3090, and PCIe 3.0 Systems
This OwlTree PCIe 4.0 Riser Cable stands out for its flexible 90-degree design, making it ideal for tight server or case layouts where space is limited. Compared with the PCIe 4.0 x16 Riser Cable 100mm with a shorter length, this model offers more maneuverability for complex setups, though it sacrifices some compactness. Its gold-plated pins enhance signal stability and durability, which is crucial for high-performance server environments. However, its 200mm length and specific compatibility mean you should confirm your GPU and system fit before purchasing. The cable’s TPE sleeve ensures flexibility without sacrificing robustness, but it lacks additional shielding features seen in other models. This pick makes sense for users who prioritize flexible routing in constrained server cases but can accept a longer cable.
Pros:- Supports PCIe 4.0 speeds for maximum data transfer rates
- Flexible, 90-degree design ideal for tight spaces
- High-quality gold-plated pins for signal integrity and longevity
- Easy plug-and-play installation
Cons:- Limited length (200mm) may not suit all configurations
- No additional EMI shielding, which could matter in noisy environments
Best for: System builders installing high-end GPUs in cramped server or mining rigs where flexible cable routing is essential
Not ideal for: Users needing ultra-compact setups or those with very specific GPU models outside the tested compatibility list
- Compatibility:PCIe 4.0 and PCIe 3.0
- Length:200mm / 7.8 inches
- Angle:90 degrees
- Connector:PCIe x16
- Pin Material:Gold-plated
- Cable Sleeve:TPE flexible sleeve
Our verdict“This cable suits those who need a flexible, durable PCIe 4.0 extension for tightly packed server setups but require compatibility confirmation beforehand.”
How We Picked
These PCIe 4.0 riser cables were evaluated based on data transfer speeds, build quality, flexibility, and compatibility with high-performance GPUs. Durability and shielding effectiveness were key factors, as signal integrity is critical in server environments. We also considered length options, ease of installation, and user feedback to determine reliability and value. The rankings reflect a balance between top-tier performance and practical usability, ensuring each pick fits specific server upgrade scenarios while highlighting tradeoffs like cost and complexity.| pcie 40 riser for server | Compatibility | Shielding |
|---|---|---|
| XUMIUZIY PCIe 4.0 Riser Cable | — | — |
| LINKUP PCIe 5.0 Riser Cable fo | PCIe 4.0 & 5.0 | Multilayer |
| PCIe 4.0 Riser Cable 90 Degree | PCIe 4.0 & PCIe 3.0 | — |
| PCIe 4.0 x16 Riser Cable 100mm | RTX 40/30 Series, RX 7000/6000 Series | Triple-layer EMI |
| GLOTRENDS 300mm PCIe 4.0 x16 R | N/A | Advanced EMI |
| OwlTree PCIe 4.0 Riser Cable | PCIe 4.0 and PCIe 3.0 | — |
Factors to Consider When Choosing Pcie 40 Riser For Server
Selecting the right PCIe 4.0 riser for your server involves understanding several key factors. Beyond raw speed, consider build quality, shielding, and compatibility to ensure longevity and reliable performance. The wrong choice can lead to signal degradation, overheating, or compatibility issues that undermine your upgrade. Here are some essential factors to keep in mind when making your decision.Cable Length and Signal Integrity
Longer riser cables can provide greater flexibility in server configurations, but they risk signal loss if not properly shielded or amplified. For most server environments, lengths around 100-200mm strike a balance between reach and performance. If you need longer cables, look for options with active components or high-quality shielding to prevent data corruption and maintain high transfer speeds.
Build Quality and Shielding
Robust connectors and high-quality shielding are essential in server settings where electromagnetic interference (EMI) can disrupt data flow. EMI shielding reduces noise, ensuring stable performance even in electrically noisy environments. Cheaper cables may lack sufficient shielding, leading to intermittent connection issues or reduced bandwidth, especially during sustained high loads.
Compatibility with Hardware and Form Factors
Verify that the riser supports your GPU’s size and mounting style, especially if using vertical or custom configurations. Not all risers support the latest GPU models or PCIe lane configurations, so check specifications carefully. Also, consider the physical connectors—some cables may have 90-degree bends for tight spaces, which can be advantageous in compact servers.
Ease of Installation and Maintenance
Flexibility in cable design can simplify installation, particularly in dense server racks. Cables with flexible, braided sleeves are easier to route and less prone to damage. Consider also the connector quality—poorly fitting connectors can cause re-seating issues over time, leading to potential downtime or hardware faults.
Cost versus Performance Tradeoff
Higher-priced riser cables tend to feature better shielding, more durable connectors, and longer lifespan, making them suitable for mission-critical servers. Cheaper options might suffice for less demanding applications but may require more frequent replacements or troubleshooting. Balance your budget with the level of performance and reliability needed for your setup.
Frequently Asked Questions
Can I use a PCIe 4.0 riser in a PCIe 3.0 server?
Yes, PCIe 4.0 riser cables are backward compatible with PCIe 3.0 slots, so they can work in older systems. However, the data transfer speeds will be limited to PCIe 3.0 levels, which might not fully utilize the cable’s capabilities. For optimal performance, ensure your server motherboard supports PCIe 4.0 or higher, especially if you want to maximize transfer rates.
How do I know if a PCIe riser is compatible with my GPU?
Compatibility depends on the physical size, PCIe lane configuration, and mounting style of your GPU. Most risers support standard PCIe x16 slots, but check if the connector length and form factor match your GPU’s dimensions. If your GPU uses a vertical mount or has specific power requirements, verify that the riser cable supports these features to avoid installation issues.
Will a longer PCIe 4.0 riser cable slow down my GPU?
Longer cables can introduce signal degradation, but high-quality, shielded PCIe 4.0 risers mitigate this risk. Typically, cables up to 200mm maintain high transfer speeds, while longer cables may require active components or better shielding. For critical server setups, sticking to shorter, well-shielded cables ensures maximum performance and stability.
Are PCIe 5.0 riser cables necessary for server upgrades?
PCIe 5.0 riser cables offer higher bandwidth and future-proofing, but most current server hardware still relies on PCIe 4.0. If your setup is based on PCIe 4.0, investing in PCIe 5.0 cables may not yield immediate benefits. However, if you plan to upgrade to PCIe 5.0 components soon, choosing compatible risers could save you money later.
What should I avoid when selecting a PCIe riser cable?
Avoid low-quality cables with poor shielding, cheap connectors, or overly long lengths without active support. These can cause data corruption, connection failures, or hardware damage. Additionally, steer clear of cables that lack compatibility with your GPU’s size or your server’s physical constraints. Investing in a reputable brand often reduces these risks.
