A cable ladder rack tray can organize long overhead cable runs, but the right choice depends on whether you need a full ladder section, mesh containment, or a wall-mount kit. My best overall pick is the Hubbell NextFrame 10-foot straight section for buyers planning a wide, continuous rack run, while the Kable Kontrol 4-inch mesh tray stands out for smaller grouped runs and the ICC rack-to-wall kit suits a short wall-supported span. The main tradeoffs are width and cable capacity versus installation space, plus choosing between a ladder-style runway and a mesh tray. Check compatibility, support points, and the complete bill of materials before ordering, since a straight section or kit may not cover every mounting need. Read on for the full comparison and advice on matching each option to your layout.
Get the latest gadgets delivered free with Prime
- Fast, free delivery on millions of items
- Prime Video, Amazon Music and more included
- Member-only deals all year
Complete the kit
Key Takeaways
- Hubbell’s 10-foot, 18-inch straight section is the strongest fit for a wide, longer runway, while its size makes it a poor match for tight spaces.
- Kable Kontrol’s 4-inch mesh tray offers a compact path for smaller cable groups; the Quest 6-inch version gives more room but needs a wider footprint.
- ICC and Wavenet rack-to-wall kits address a different job from standalone straight sections: supporting a run between a rack and a wall.
- Tripp Lite’s 12-inch-wide, 10-foot ladder prioritizes a broad cable path, while the 6-inch HLO0690G tray better suits constrained layouts.
- Nvent Hoffman curved sections are the specialized choice for changes in direction, but curved pieces alone do not replace the straight sections and fittings in a complete route.
| Kable Kontrol Wire Mesh Cable Tray, 5 ft × 4 in × 2 in, 10-Pack |  | Best for Long, Flexible Runs | Quantity: 10 pieces | Total length: 50 ft | Length per tray: 5 ft | VIEW ON AMAZON | See Our Full Breakdown |
| ICC Cable Runway Ladder Rack, 5-Foot Straight Section, Black |  | Best for Heavy-Duty Data-Center Runs | Length: 5 ft | Width: 12 in (listed item dimension: 11.25 in) | Material: 16-gauge alloy steel | VIEW ON AMAZON | See Our Full Breakdown |
| Hubbell NextFrame Steel Straight Section Ladder Rack, 10 ft × 18 in, Gray |  | Best for Wide, Versatile Routes | Length: 10 ft | Width: 18 in | Material: Alloy steel | VIEW ON AMAZON | See Our Full Breakdown |
| ICC 5 ft. Runway Rack-to-Wall Kit |  | Best for Wall-Mounted Connections | Brand: ICC | Model: ICCMSLRW05 | Length: 5 ft | VIEW ON AMAZON | See Our Full Breakdown |
| Tripp Lite SmartRack Cable Ladder, 12-Inch Wide, 10-Foot |  | Best for Split-Section Rack Runs | Model: SRCABLELADDER | Width: 12 in | Total length: 10 ft | VIEW ON AMAZON | See Our Full Breakdown |
| Wavenet 5-Foot Rack-to-Wall Ladder Rack Kit |  | Best Rack-to-Wall Kit | Brand: Wavenet | Model: WAVWLR1205KIT | Manufacturer part number: WL-R1205-KIT | VIEW ON AMAZON | See Our Full Breakdown |
| HLI2490B 24-Inch Cable Ladder Rack Wire Management Tray |  | Best Short Patch-Cord Tray | Brand: Generic | Model: HLI2490 | Part number: HLI2490B | VIEW ON AMAZON | See Our Full Breakdown |
| Quest Manufacturing Wire Mesh Cable Tray, 5 ft x 6 in x 2 in, 10 Pack |  | Best for Multi-Run Coverage | Brand: Quest Manufacturing | Model number: CT0506-03-10 | Material: Zinc-coated steel | VIEW ON AMAZON | See Our Full Breakdown |
| Nvent Hoffman Curved Ladder Rack Sections, Black Steel |  | Best for Multi-Position Routing | Brand: Nvent Hoffman | Model number: LOB15BLK | Manufacturer part number: LOB15BLK | VIEW ON AMAZON | See Our Full Breakdown |
| 6-Inch Cable Ladder Rack Wire Management Tray, Gray (HLO0690G) |  | Best Neutral-Finish Tray | Brand: Generic | Manufacturer: Xuanthang | Model: HLO0690 | VIEW ON AMAZON | See Our Full Breakdown |
| cable ladder rack tray | Material | Model | Color | Brand |
|---|---|---|---|---|
| Kable Kontrol Wire Mesh Cable | Galvanized zinc-plated steel | — | — | — |
| ICC Cable Runway Ladder Rack | 16-gauge alloy steel | ICCMSLST05 | — | — |
| Hubbell NextFrame Steel Straig | Alloy steel | HLS1018G | Gray | — |
| ICC 5 ft. Runway Rack-to-Wall | Metal | ICCMSLRW05 | — | ICC |
| Tripp Lite SmartRack Cable Lad | — | SRCABLELADDER | Black | — |
| Wavenet 5-Foot Rack-to-Wall La | Powder-coated steel | WAVWLR1205KIT | Black | Wavenet |
| HLI2490B 24-Inch Cable Ladder | — | HLI2490 | Black | Generic |
| Quest Manufacturing Wire Mesh | Zinc-coated steel | — | — | Quest Manufacturing |
| Nvent Hoffman Curved Ladder Ra | Mild steel | — | Black | Nvent Hoffman |
| 6-Inch Cable Ladder Rack Wire | — | HLO0690 | Gray | Generic |
More Details on Our Top Picks

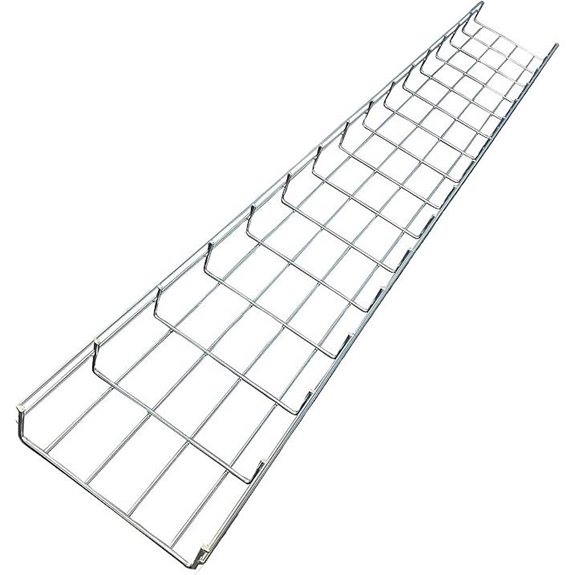

Kable Kontrol Wire Mesh Cable Tray, 5 ft × 4 in × 2 in, 10-Pack
I’d choose the Kable Kontrol pack when the job needs many feet of compact cable pathway rather than a single wide ladder section. Ten 5-foot trays provide 50 feet of routing, and the wire mesh can be sized to suit an installation. Its 4-inch width and 2-inch depth fit smaller network, AV, fiber, and computer cabling runs; by comparison, the ICC Cable Runway is 12 inches wide and better suited to larger rack pathways. Galvanized zinc-plated steel and NEC approval add useful project credentials, but this is a screw-in tray, not a complete rack-to-wall kit. I’d budget for the required mounting hardware and tools, and skip it if the installation calls for a broad, heavy-duty ladder runway.
Pros:- Ten sections provide 50 feet of total cable pathway
- Compact 4-inch-wide, 2-inch-deep profile suits smaller cable bundles
- Can be sized to fit installation needs
- Galvanized zinc-plated steel construction and NEC approval
Cons:- Screw-in installation may require separate mounting hardware and tools
- Narrower than the 12-inch ICC and Tripp Lite ladder options
- Supplied as tray sections rather than a full rack mounting system
Best for: Installers routing modest bundles of network, AV, or fiber cable across multiple short sections who want a 50-foot supply.
Not ideal for: Data-center teams carrying large cable bundles or buyers who need a complete mounting kit; the 4-inch tray is narrow and screw-in installation requires separate hardware.
- Quantity:10 pieces
- Total length:50 ft
- Length per tray:5 ft
- Width:4 in (101.6 mm)
- Depth:2 in (50.8 mm)
- Material:Galvanized zinc-plated steel
- Finish:Chrome
- Installation and approval:Screw-in; NEC approved
Our verdict“Choose this pack for long, adaptable runs of smaller cable bundles, but pick a wider ladder rack for dense data-center pathways.”

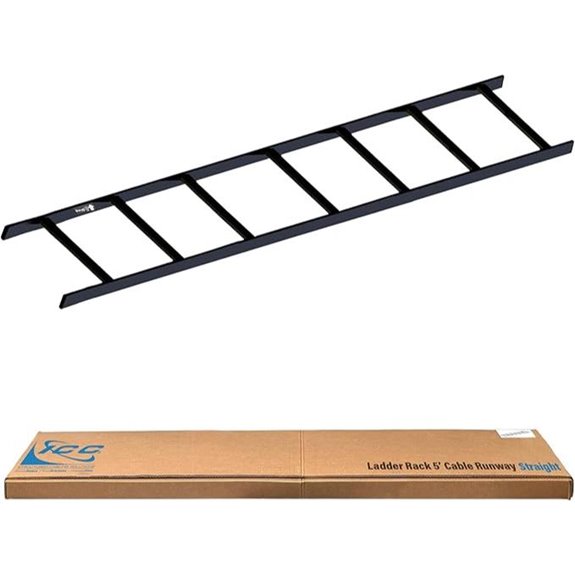

ICC Cable Runway Ladder Rack, 5-Foot Straight Section, Black
The ICC runway is my pick for a short, load-rated section in an indoor data center, networking room, or telecom installation. Its 12-inch-wide pathway gives cable bundles more room than the Kable Kontrol 4-inch wire mesh tray, and the stated capacity of 500 pounds at 50% fill makes it the more clearly specified choice for substantial runs. The 5-foot straight section also integrates with ICC runway sections and fittings, which helps when extending a compatible system. That system fit is a real boundary: this is one section, not a freestanding installation, and compatible mounting hardware or fittings are required. Unlike the Tripp Lite SmartRack, it is listed for indoor use only, so I’d keep it out of exposed outdoor routes.
Pros:- Supports up to 500 pounds at 50% fill
- 12-inch-wide pathway gives larger bundles more room than the Kable Kontrol tray
- Designed to integrate with ICC runway sections and fittings
- 16-gauge steel with a black powder-coated finish
Cons:- Indoor use only
- Compatible mounting hardware or fittings are required
- One 5-foot section may not suit routes that need longer uninterrupted coverage
Best for: Data-center and telecom installers building an indoor ICC runway system who need a 12-inch pathway with a stated load capacity.
Not ideal for: Buyers seeking an outdoor-rated section, a complete mounting package, or a compact tray for small cable bundles.
- Length:5 ft
- Width:12 in (listed item dimension: 11.25 in)
- Material:16-gauge alloy steel
- Finish:Black powder-coated
- Load capacity:500 lb at 50% fill
- Mounting type:Rack mount
- Use:Indoor; data center, IT networking, and telecom rooms
- Model:ICCMSLST05
Our verdict“Pick the ICC section for a compatible indoor runway where load capacity and a wide cable path matter more than a complete kit.”
Hubbell NextFrame Steel Straight Section Ladder Rack, 10 ft × 18 in, Gray
For a route that needs more width and mounting flexibility, the Hubbell NextFrame stands apart with an 18-inch-wide, 10-foot straight section. It supports UTP and fiber cabling and can be mounted horizontally, vertically, overhead, or on floors, walls, ceilings, racks, and cabinets. That range gives it a broader placement role than the 5-foot ICC runway section, while its 10-foot length covers more distance per section. It is also part of a modular system, so it can fit new routes or extend existing ones. The tradeoff is that the supplied data does not state a load capacity, and the listing gives no warranty. I’d choose it for adaptable routing, not when a documented load rating is a deciding requirement.
Pros:- 18-inch width provides more pathway space than the 12-inch ICC runway
- 10-foot straight section covers more distance per section than the 5-foot ICC model
- Supports horizontal, vertical, and overhead routing
- Modular system can work with new or existing cable routes
Cons:- No warranty is listed
- Product data does not state a load capacity
- Wide section may be excessive for compact or low-volume cable runs
Best for: Installers planning a wide UTP or fiber route that may need floor, wall, ceiling, rack, or overhead mounting.
Not ideal for: Buyers who need a stated load capacity, a warranty, or a compact pathway for a small cable bundle.
- Length:10 ft
- Width:18 in
- Material:Alloy steel
- Finish:Powder coat
- Color:Gray
- Model:HLS1018G
- Mounting locations:Floors, walls, ceilings, equipment racks, or cabinets
- Warranty:No warranty
Our verdict“Choose the Hubbell section for wide, flexible routing locations, but favor the ICC runway if you need an explicit load-capacity figure.”

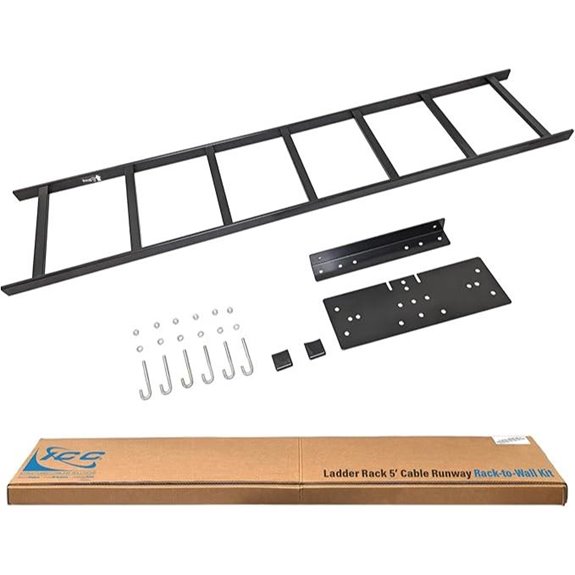

ICC 5 ft. Runway Rack-to-Wall Kit
This ICC kit fills a specific role in a ladder-rack layout: connecting runway sections to a wall. The included ladder mounting hardware makes it more installation-focused than the standalone ICC 5-foot straight runway section, which needs compatible hardware or fittings to mount. Its powder-coated metal construction is suited to a rack-to-wall connection, and the listed 5-foot length provides a useful span for that purpose. I would not treat it as a general-purpose cable tray or a full overhead runway system; its value depends on needing this wall connection and pairing it with compatible ladder sections. The product data does not identify an included ladder section, so buyers should confirm what else their planned installation requires.
Pros:- Designed to attach cable runway sections to a wall
- Includes ladder mounting hardware
- Powder-coated metal construction
- 5-foot listed length for a rack-to-wall connection
Cons:- A specialized wall-mount kit rather than a standalone cable ladder section
- Requires compatible runway sections for a usable cable pathway
- Product data does not specify a load capacity
Best for: Installers connecting compatible ICC runway sections to a wall who want ladder mounting hardware included with the kit.
Not ideal for: Buyers who need a standalone ladder section, a complete cable-routing system, or confirmation that all required ladder components are included.
- Brand:ICC
- Model:ICCMSLRW05
- Length:5 ft
- Dimensions:61 × 12.5 × 3 in
- Weight:3.9 lb
- Material:Metal
- Mounting type:Wall mount
- Included components:Ladder mounting hardware
Our verdict“Choose this kit when your project specifically needs an ICC runway-to-wall connection; choose the ICC straight section for the cable pathway itself.”
Tripp Lite SmartRack Cable Ladder, 12-Inch Wide, 10-Foot
The SmartRack is the most purpose-built option here for routing overhead cables beside a rack enclosure. Its 12-inch-wide, 10-foot path arrives as two 5-foot sections, which can be easier to transport and assemble than a single long piece. The ladder can run parallel or perpendicular to an enclosure, and the included grounding stud adds a useful connection point. Compared with the Hubbell NextFrame, it has a narrower path and a more specific enclosure-oriented mounting arrangement; compared with the ICC 5-foot runway, it covers more total length in one product. The main catch is compatibility: open-frame rack installation needs a separate SRLADDERATTACH, while enclosure mounting must connect to SRCABLETRAY. I’d check the rack setup before selecting it.
Pros:- 10-foot total length supplied in two 5-foot sections
- Can mount parallel or perpendicular to an enclosure
- Grounding stud is included
- Designed to organize overhead cables and help reduce cable stress
Cons:- Open-frame rack installation requires the separate SRLADDERATTACH
- Enclosure mounting must connect to SRCABLETRAY
- Rack-specific mounting requirements make it less flexible than the Hubbell multi-location section
Best for: Rack installers routing overhead cables around an enclosure who can connect the ladder to SRCABLETRAY or supply the required open-frame attachment.
Not ideal for: Buyers seeking a universal standalone ladder rack or a setup that avoids separate rack-specific attachment components.
- Model:SRCABLELADDER
- Width:12 in
- Total length:10 ft
- Sections:Two 5-foot sections
- Weight:25.8 lb
- Color:Black
- Mounting orientation:Parallel or perpendicular to an enclosure
- Grounding:Grounding stud included
- Rack attachment requirements:SRLADDERATTACH required for open-frame racks; enclosure mounting connects to SRCABLETRAY
Our verdict“Choose the SmartRack for a compatible enclosure-based overhead route, but verify the attachment requirements before planning an open-frame installation.”

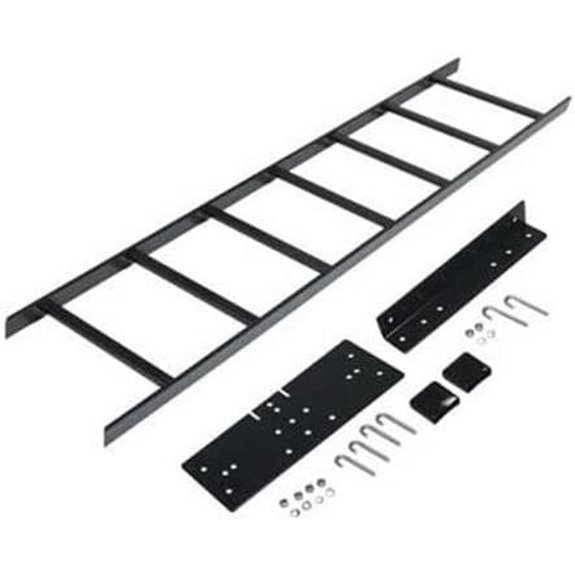

Wavenet 5-Foot Rack-to-Wall Ladder Rack Kit
The Wavenet 5-Foot Rack-to-Wall Ladder Rack Kit suits buyers bridging a distribution rack to a wall while carrying an overhead cable run. Its powder-coated steel frame gives this kit a sturdier, more structural role than the HLI2490B, which is a 24-inch wire-management tray rather than a rack-to-wall support. The five-foot length offers a defined span, and universal fit is listed for trailer, truck, and van applications. That vehicle compatibility makes this a less direct match for fixed data-center installations than the ICC 5 ft. Runway Rack-to-Wall Kit, which is named for the same connection type. The tradeoff is limited installation guidance: mounting details and specific compatibility dimensions are not supplied, so I would verify the attachment points before buying.
Pros:- Five-foot length supports a defined overhead cable span
- Powder-coated steel frame is designed for strength and stability
- Universal fit is listed for trailers, trucks, and vans
- Compatible with common cable-management systems and distribution racks
Cons:- Installation details and attachment dimensions are not provided
- Vehicle-focused fit information may not answer fixed-site rack compatibility questions
- The listing does not specify load capacity
Best for: Installers who need a five-foot steel rack-to-wall span for overhead cabling in a trailer, truck, or van.
Not ideal for: Buyers who need a fully specified data-center mounting kit or clear installation instructions before purchase.
- Brand:Wavenet
- Model:WAVWLR1205KIT
- Manufacturer part number:WL-R1205-KIT
- Length:5 ft
- Material:Powder-coated steel
- Color:Black
- Mounting type:U-bolt
- Compatible vehicle types:Trailer, truck, van
Our verdict“Choose the Wavenet kit for a steel five-foot rack-to-wall span, but confirm mounting and load requirements before ordering.”
HLI2490B 24-Inch Cable Ladder Rack Wire Management Tray
The HLI2490B is the compact pick for organizing a short section of wires and patch cords, not for building a long cable route. Its 24-inch length is easier to fit into a confined rack area than the five-foot Quest Manufacturing wire mesh trays, but the shorter format also covers far less distance. The listing identifies a black finish and a specific model and part number, yet gives no material, mounting method, capacity, or included-hardware details. That leaves more fit questions than the Wavenet rack-to-wall kit, whose steel construction and mounting type are stated. I would treat this as a targeted tray for a known space rather than a flexible system component; buyers planning a larger run may be better served by the Quest ten-pack, provided they can supply mounting accessories.
Pros:- 24-inch length fits a short, localized cable-management area
- Designed to organize wires and patch cords
- Black finish can suit dark rack hardware
- Model and part number are identified for matching a specified component
Cons:- Material and construction details are not provided
- Mounting method and included hardware are unspecified
- Short length offers less route coverage than the Quest 5 ft trays
Best for: Technicians who need a short, black tray to tidy patch cords in a measured 24-inch rack section.
Not ideal for: Buyers laying out long cable routes or anyone who needs confirmed material, mounting, or load specifications.
- Brand:Generic
- Model:HLI2490
- Part number:HLI2490B
- Length:24 inches
- Color:Black
- Intended use:Wire and patch-cord organization
Our verdict“Pick this tray for a known short patch-cord section, not as the basis for an extended cable route.”
Quest Manufacturing Wire Mesh Cable Tray, 5 ft x 6 in x 2 in, 10 Pack
For broad cable coverage across a project, the Quest Manufacturing 10-pack offers ten five-foot mesh trays, each 6 inches wide and 2 inches high. That makes it a better fit for repeated wall, ceiling, or underfloor runs than the HLI2490B, which is only 24 inches long and lacks stated construction details. Its zinc-coated steel trays can be cut with bolt cutters and joined with bolts, giving installers more control over route length and layout than a single fixed section such as the ICC 5-foot straight ladder rack. The tradeoff is that the package does not include the mounting accessories needed to install it, and a mesh tray is not the same as a rack-to-wall kit. I would choose it for multi-section cable routing where the installer can source the required supports and hardware.
Pros:- Ten five-foot sections provide coverage for multiple runs
- Zinc-coated steel construction has an electro-zinc plated finish
- Sections can be cut with bolt cutters for custom layouts
- Bolt-together design supports joining sections for longer routes
Cons:- Mounting accessories are required but not included
- Six-inch width may not suit cable bundles needing more room
- Cutting and joining sections add installation work
Best for: Installers planning several wall, ceiling, or underfloor cable runs who can provide mounting accessories.
Not ideal for: Buyers who need a complete rack-to-wall kit, a single ready-to-mount section, or wider cable capacity than a six-inch tray provides.
- Brand:Quest Manufacturing
- Model number:CT0506-03-10
- Material:Zinc-coated steel
- Tray length:5 ft each
- Tray width:6 in
- Tray height:2 in
- Pack quantity:10
- Installation:Wall, ceiling, or underfloor mounting with accessories
- Warranty:5 years
Our verdict“Choose this pack for adaptable, multi-run cable routing if you can source mounting hardware and manage the installation work.”
Nvent Hoffman Curved Ladder Rack Sections, Black Steel
The Nvent Hoffman curved ladder rack sections are the specialized choice here for routing cables through a curve or a multi-position layout. Mild-steel construction and a black finish suit a structured ladder-rack system, while the cULus classification offers a listed classification detail absent from the HLI2490B and the gray HLO0690G tray. Unlike the Quest Manufacturing mesh trays, which are straight, cuttable sections for broad wall, ceiling, or underfloor runs, this product is intended to address curved rack geometry. That narrower purpose is also its limitation: the listing gives no section dimensions, radius, quantity, or connection details, so I would not select it until those match the existing runway. It is a better fit for a known compatible system than for buyers assembling a cable route from unspecified parts.
Pros:- Curved section supports routing around non-straight rack layouts
- Multi-position design is suited to varied routing configurations
- Mild-steel construction
- cULus classified
Cons:- Section dimensions and curve radius are not provided
- Connection compatibility with existing rack systems is unspecified
- The listing does not identify quantity or included mounting hardware
Best for: Rack-system installers who need a curved, multi-position section and can confirm its dimensions and connections against their existing runway.
Not ideal for: Buyers seeking a straight cable tray, a complete cable route, or clear dimensions and installation details in the listing.
- Brand:Nvent Hoffman
- Model number:LOB15BLK
- Manufacturer part number:LOB15BLK
- Material:Mild steel
- Color:Black
- Section type:Curved ladder rack section
- Special feature:Multi-position
- Classification:cULus classified
Our verdict“Choose this section only when its curve and connection details are confirmed for your existing ladder-rack system.”
6-Inch Cable Ladder Rack Wire Management Tray, Gray (HLO0690G)
The HLO0690G offers a six-inch-wide tray for organizing patch cords and wires, with a gray finish for buyers matching lighter rack hardware. Its stated width gives a clearer fit reference than the HLI2490B, whose listing specifies a 24-inch length but no width. However, the HLO0690G does not provide its length, material, or installation method, so the fit picture remains incomplete. Compared with the Quest Manufacturing mesh tray pack, it is a simpler single-tray option rather than a defined set of five-foot steel sections for extended routes. I would favor it for a small, specific cable-management need only after confirming its dimensions and mounting requirements. The sparse product data makes it harder to recommend for a planned system build than the Quest trays or the steel Wavenet kit.
Pros:- Six-inch width is specified for matching a cable-management space
- Designed to organize patch cords and wires
- Gray finish may suit lighter-colored rack equipment
- Model and part number are listed
Cons:- Tray length is not provided
- Material and construction details are unspecified
- Installation method and hardware are not described
Best for: Rack owners who need a gray, six-inch-wide wire tray and can verify the missing dimensions and mounting details.
Not ideal for: Installers planning a long cable route or buyers who require confirmed tray material, length, and installation specifications.
- Brand:Generic
- Manufacturer:Xuanthang
- Model:HLO0690
- Part number:HLO0690G
- Width:6 inches
- Color:Gray
- Intended use:Patch-cord and wire management
Our verdict“Consider this tray for a small gray-finish cable-management need only after confirming its full dimensions and mounting requirements.”
How We Picked
I ranked these options by how clearly their listed form, dimensions, and intended installation use meet common cable-routing jobs. The comparison gives weight to usable width and length, whether a product is a straight section, mesh tray, curved piece, or rack-to-wall kit, and how readily a buyer can tell what else may be needed to build a complete run. I also considered the practical impact of the format: mesh trays suit contained, smaller routes, while ladder runway sections offer a different structure for longer infrastructure paths.
The order reflects versatility for a typical planned cable route, then specialization and fit. Hubbell’s 10-foot-wide-span section ranks first for buyers who need a substantial straight runway; smaller mesh options rank well for compact routes, and wall kits or curved sections rank lower as they serve narrower installation cases. Product listings do not establish load ratings, included hardware, or system compatibility for every item, so I avoid treating those details as confirmed and recommend checking manufacturer specifications before combining components.
| cable ladder rack tray | Color | Brand |
|---|---|---|
| Kable Kontrol Wire Mesh Cable | — | — |
| ICC Cable Runway Ladder Rack | — | — |
| Hubbell NextFrame Steel Straig | Gray | — |
| ICC 5 ft. Runway Rack-to-Wall | — | ICC |
| Tripp Lite SmartRack Cable Lad | Black | — |
| Wavenet 5-Foot Rack-to-Wall La | Black | Wavenet |
| HLI2490B 24-Inch Cable Ladder | Black | Generic |
| Quest Manufacturing Wire Mesh | — | Quest Manufacturing |
| Nvent Hoffman Curved Ladder Ra | Black | Nvent Hoffman |
| 6-Inch Cable Ladder Rack Wire | Gray | Generic |
Factors to Consider When Choosing Cable Ladder Rack Tray
Choosing a cable ladder rack tray starts with the route and support plan, not the product name. These listings include several different component types, so compare what each piece does before treating them as interchangeable.
Match the component to the job
A straight ladder section, mesh tray, wall kit, and curved section solve different parts of a cable route. A straight section forms the main runway, while a rack-to-wall kit addresses a specific span and mounting arrangement. Mesh tray provides a more contained path than an open ladder design, which may suit smaller grouped runs or routes needing a defined base. A curved section helps redirect a route but cannot substitute for the straight lengths on either side. A common ordering mistake is buying a useful-looking component before drawing the full path and listing every turn, support, and endpoint.
Size the route for both cables and installation space
Compare the tray’s inside usable width and depth with the cable bundle, not only the outside dimensions in a product title. A wider path can leave room for future additions, but it can also clash with racks, ceilings, pipes, or other services. Narrow options such as the 4-inch Kable Kontrol mesh tray favor a compact footprint; wider sections such as Hubbell’s 18-inch runway need more clearance. Allow space for bends and access to cable entry points rather than filling every inch of the tray. Measure the complete route at its narrowest point before selecting a width.
Check compatibility across the entire system
Products that share the words “ladder rack” may still use different connection details, mounting hardware, or system standards. Confirm that straight sections, curves, splice plates, supports, and wall or rack attachments are approved to work together. Do not assume that a rack-to-wall kit from one brand mates with another brand’s runway just because the lengths appear similar. Where a listing leaves included hardware unclear, review its specification sheet or ask the seller before ordering. A small compatibility check can prevent a partially assembled route that needs replacement parts.
Plan supports and load capacity separately
Tray dimensions do not tell you how much cable weight a route can safely carry. Check the manufacturer’s load table, support spacing, allowable span, and any limits for concentrated loads before installation. Longer sections may reduce the number of joints, but they do not automatically permit wider gaps between supports. Cable bundles can grow over time, so account for planned additions rather than only the initial installation. If the product listing does not provide the needed figures, get them from the manufacturer instead of estimating from appearance.
Choose material and finish for the installation environment
Steel runway products and wire mesh trays differ in structure, finish, and how they fit the site’s environmental demands. Check whether the specified finish is suitable for indoor, outdoor, humid, or corrosive locations; a color description alone does not establish corrosion protection. Mesh can make cable access and inspection easier, while ladder designs may better fit a long infrastructure route. Consider grounding and bonding requirements for the installation, as well as the cable type and applicable site rules. Paying more for a suitable rated finish or a matching system can be wiser than adapting an unsuitable component later.
Compare total system needs, not just section length
A package count or long straight section can look like a complete solution but may cover only part of the job. Make a parts list that includes route length, turns, wall or rack attachments, supports, connectors, and any covers or dividers your application calls for. Multi-piece mesh packs may suit repeated short runs, while a 10-foot runway can reduce joints on a longer straight stretch. On the other hand, a long piece can be harder to move and position in a cramped room. Choose the format that minimizes unnecessary joints without making transport and installation impractical.
Frequently Asked Questions
Can I connect a mesh cable tray to a ladder rack?
Sometimes, but the connection depends on the tray and runway designs, their dimensions, and approved fittings. Do not assume a mesh tray will attach directly to a ladder rack just because both carry cables overhead. Check whether the manufacturer specifies compatible brackets or transition pieces and whether the combined assembly maintains its rated load. If the two parts come from different product systems, confirm compatibility with both manufacturers. A planned transition point is easier to verify than improvising a connection during installation.
How do I choose between a 4-inch, 6-inch, 12-inch, and 18-inch tray?
Start with the width of the cable bundle and the available route clearance, then leave room for access and future additions. The 4-inch and 6-inch mesh options in this roundup suit more compact paths, while the 12-inch Tripp Lite and 18-inch Hubbell sections provide broader cable routes. Wider trays can make cable placement easier but occupy more overhead space and may require careful coordination with nearby services. Check usable internal width rather than relying solely on nominal dimensions. If the route has a tight pinch point, that location may set the maximum practical width.
Is a rack-to-wall kit enough to build a complete cable route?
Not necessarily. A rack-to-wall kit is intended for a particular supported span, and the product may not include all the straight sections, connectors, or additional supports needed for the full route. Review the kit’s contents and installation instructions, then map every section between the rack and the destination. Confirm the wall construction and mounting method can handle the planned load. The ICC and Wavenet kits are useful starting points for this layout, but buyers should verify what else must be ordered.
When should I use a curved ladder rack section instead of bending the cable?
A purpose-made curved section can provide a defined path around a route change, especially where the rack system calls for a controlled turn. Whether it is preferable to routing cable through a gradual bend depends on cable bend-radius limits, available space, and the rack manufacturer’s instructions. The Nvent Hoffman curved sections listed here address direction changes, but buyers still need to confirm matching straight sections and connection hardware. Never force cable around a turn tighter than its specified bend radius. For a simple route, compare the required clearance and parts count before adding a curve.
What specifications should I verify before installing a cable ladder rack tray?
Verify load capacity, permitted support spacing, section dimensions, connection method, and the hardware included with each item. Also check material and finish suitability for the installation environment, along with grounding or bonding requirements where applicable. Confirm that every straight, curved, and mounting component belongs to a compatible system. If cables will be added later, include that planned weight in the capacity calculation. Manufacturer documentation should take precedence over assumptions based on a product photo or a short listing description.
Conclusion
For a broad straight route, I’d start with the Hubbell NextFrame 10-foot, 18-inch section as the best overall choice in this lineup. Buyers seeking best value for compact cable groups should compare the Kable Kontrol 4-inch mesh pack with the Quest 6-inch pack and pick the width their route can accommodate. The best premium-style infrastructure fit is the Tripp Lite 12-inch-wide, 10-foot ladder for a wide, extended run, provided its system details suit the installation. For beginners planning a rack-to-wall span, the ICC rack-to-wall kit gives a clearly defined starting point, though I’d verify included parts before ordering. Choose the Nvent Hoffman curved sections for a route that needs a planned turn, or the 6-inch HLO0690G tray when a narrower gray wire-management option fits better; in every case, confirm load, mounting, and compatibility specifications first.
Fall Picks
fall essentials
As an affiliate, we earn on qualifying purchases.
